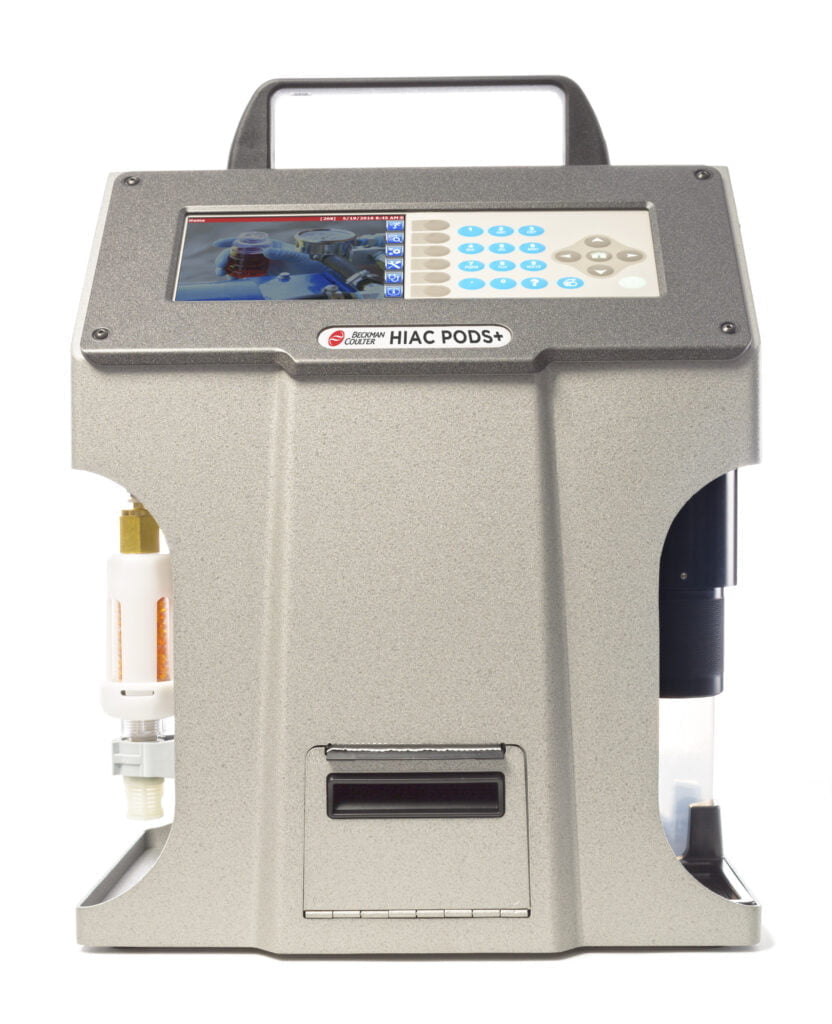

The HIAC Portable Oil Diagnostic System (PODS+) provides proactive and predictive maintenance information instantly. Sample low- or high viscosity fluids and report data to ISO 4406, NAS 1638, NAVAIR, GOST, or SAE AS4059 reporting standards.
With an integrated internal pump eliminating the need for CO2 cartridges, the HIAC PODS+ is highly portable with improved bubble degassing capabilities for virtually unlimited field sampling. The PODS+ is easy to use- saves operator time and gives quick results.
-
Self-diagnostic alerts for: Sensor Contamination, Sensor Blockage, In need of Service
-
Sample recipe wizard
-
Paperless workflow
Detecting Moisture in Hydraulic Fluid, Oil and Fuels
Monitoring the amount of moisture in petroleum based fluids before 100% saturation occurs will reduce degradation and will increase the life and performance of equipment components. Advancements in technology allowed Beckman Coulter to add a moisture sensor to our HIAC PODS+ Portable Liquid Particle Counters. One instrument, one sample, one button, relative humidity percentage, particle count analysis; all in under 60 seconds. Free water is the real issue and it is imperative that you know when free water exists in your fluid. Reduce oxidation and corrosion, extend system up-time by detecting moisture in petroleum based systems.
Fast and Efficient
-
Analysis in < 60 seconds
-
Flowrate of 50 ml/min
-
Time to sample 500 ml is only 10 minutes!
-
Save time & eliminate operator error with custom sample recipes
-
Easily move from one sample point to another
-
One-button sampling–no training or instrument expertise required
Extended Service Life
-
Predictive moisture detection before degradation sets in
-
Self-cleaning routines to remove unwanted particles
-
Connection to operating online system for instant system cleanliness data
Calibrations & Reporting Standards
-
ISO-MTD
-
ACFTD
-
ISO-11171
-
PSL
-
Glycol
-
ISO, SAE, NAS, ASTM, GOST, DEF STAN, NAVAIR & user defined
Sample Management
-
5 mL – 50 mL programmable sample volume
-
PODS+ can handle viscous samples up to 425 cSt without dilution
-
Custom sample recipes with guided recipe wizard
-
Samples & reports instantly backed up and exportable to PC and/or LIMS
-
Easy swithcing between report formats, (ISO, NAS or SAE cleanliness codes)
-

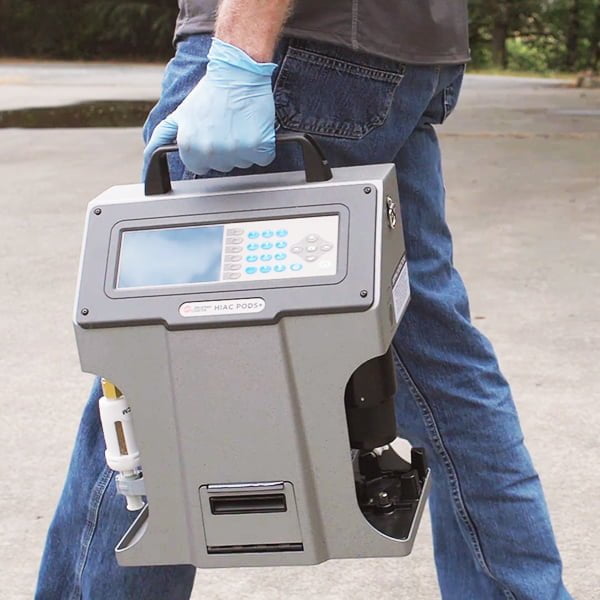

100% portability for anywhere liquid-contamination analysis
-
Digital workflow to eliminate mistakes during manual data transfers
-
reports are instantly backed up and ready for export to a computer and/or LIMS
Online Sampling
Connect the PODS+ to an operating online system that instantly communicates system cleanliness.
PODS+ Key Benefits
-
Detecting Moisture in Hydraulic Fluid, Oil and Fuels
-
Easily move from one sample point to another
-
Onsite instant reports that eliminate lab wait times and lab fees
-
Ability to report out to multiple standards from the same sample
-
Detects moisture in petroleum-based fluids
-
Multi-liquid sampling capability (fuels, petroleums, water & glycols)
-
Save time with custom sample recipes and sample test runs under 60 seconds
-

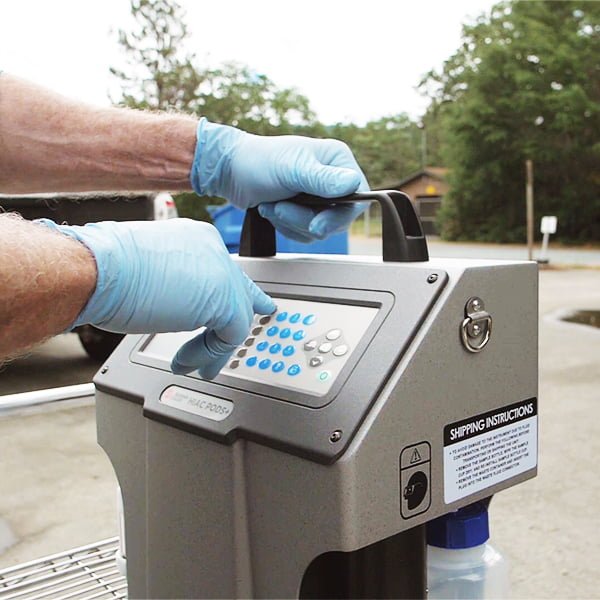

1-button sampling, no training or instrument expertise required
-
Reporting standards: ISO, SAE, NAS, ASTM, GOST, DEF STAN, NAVAIR, User defined
Applications
-
Oil & Gas
-
Aerospace
-
Power (Wind & Nuclear)
-
Heavy Machinery
Fluid Compatibility
-
Akso Fyrquel™
-
Alcohols & Aldehydes
-
Aromatics
-
Fuels: Diesel, Glycol, Hydraulic fluids, Jet fuel (JP4, JP5, & others)
-
Marston Bentley HW 540, MIL-H-5606, MIL-H-83282
-
Monsanto Coolanol™, Monsanto Skydrol™, Oil
-
Kerosene, Ketones, Stoddard Solvent
-
Water
